Covering Tissues : Skin and Fascia

  • Example

    skin1

    Description

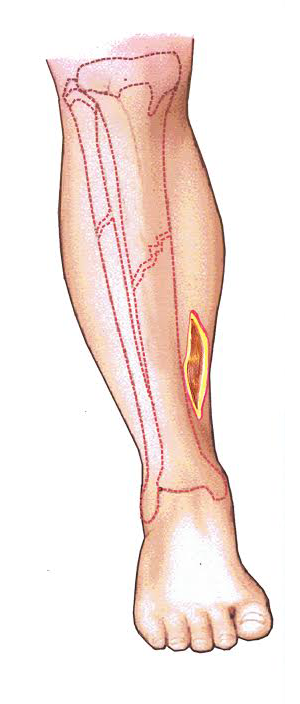

    Without Skin Loss - Wounds not over the fracture site

    1
  • Example

    skin2

    Description

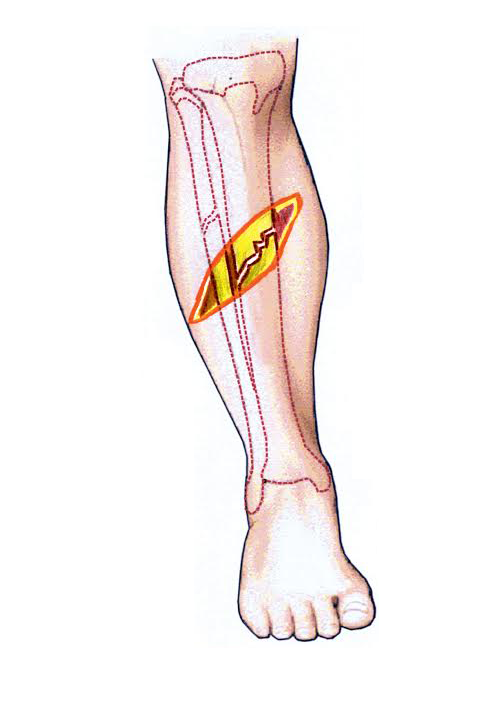

    Without Skin Loss - Wounds over the fracture site

    2
  • Example

    skin3

    Description

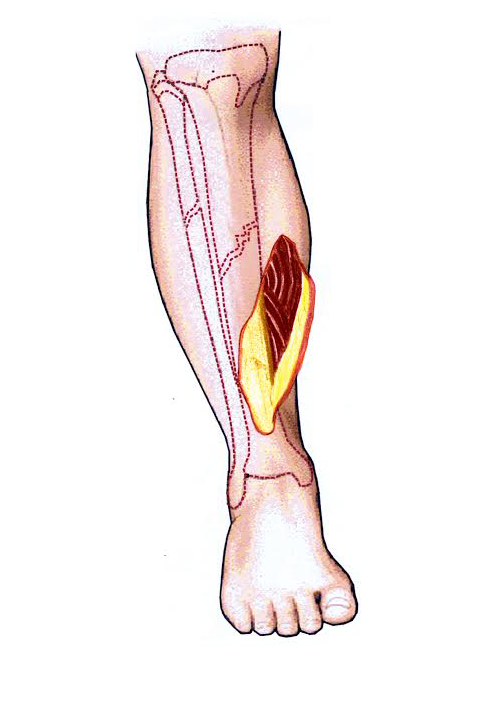

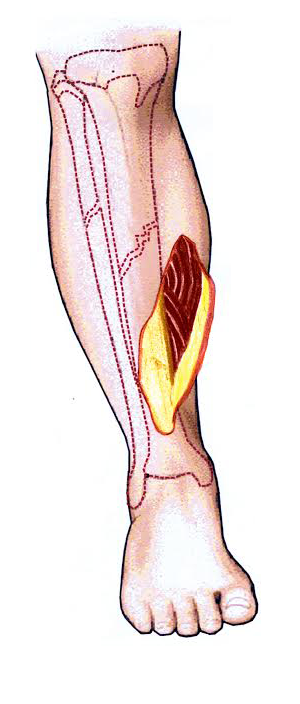

    With Skin Loss - Wounds not over the fracture site

    3
  • Example

    skin4

    Description

    With Skin Loss - Wounds over the fracture site

    4
  • Example

    skin5

    Description

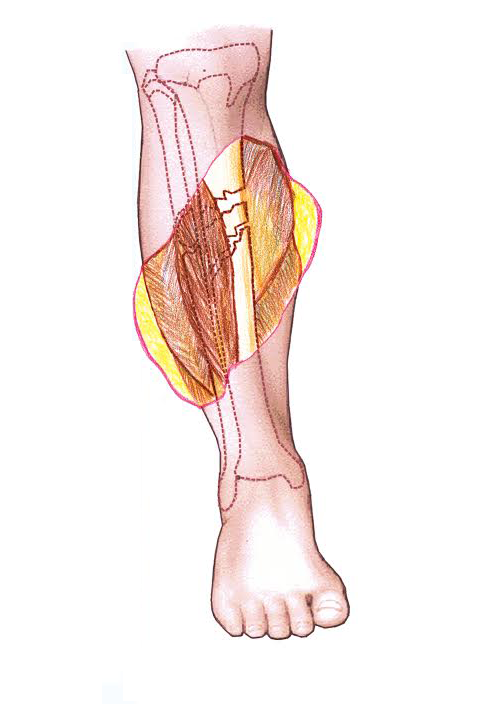

    Circumferential wound with skin loss

    5

Musculo-Tendinous, Nerve

  • Example

    Description

    Exposure of MT units without direct damage

    1
  • Example

    Description

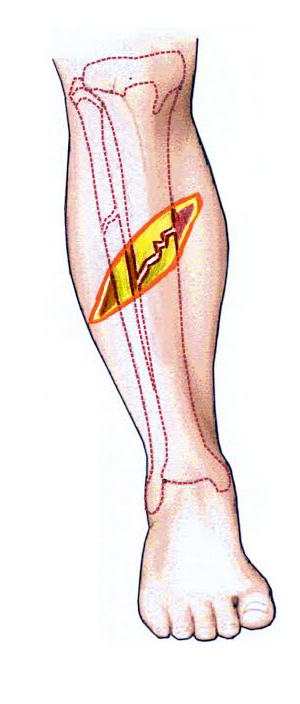

    Repairable injury to a MT unit

    2
  • Example

    Description

    Crushing with loss or irreparable damage to MT unit/Repairable injury to a nerve

    3
  • Example

    Description

    Loss of one compartment of MT unit / Irreparable injury to a nerve

    4
  • Example

    Description

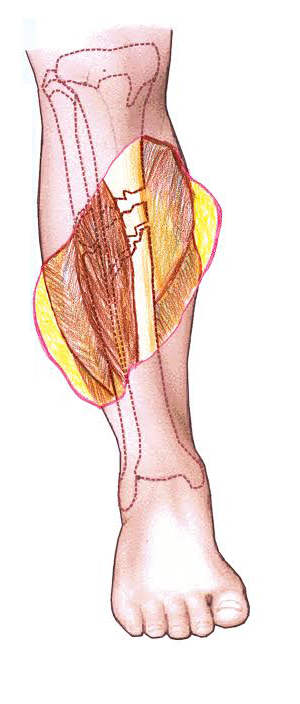

    Loss of two or more compartments / Subtotal amputation

    5

Bone and Joints

  • Example

    skin1

    Description

    Transverse or Oblique fractures with minimal periosteal stripping

    1
  • Example

    skin2

    Description

    Presence of unicortical comminution

    2
  • Example

    skin3

    Description

    Extensive periarticlular comminution with joint disorganization/ Segmental fracture

    3
  • Example

    skin4

    Description

    Circumferential bone loss of less than 4 cm

    4
  • Example

    skin5

    Description

    Circumferential bone loss of more than 4 cm

    5

Co-morbid factors influencing outcome(Two points each)

Note : Please Tick all Co-morbid factors present
